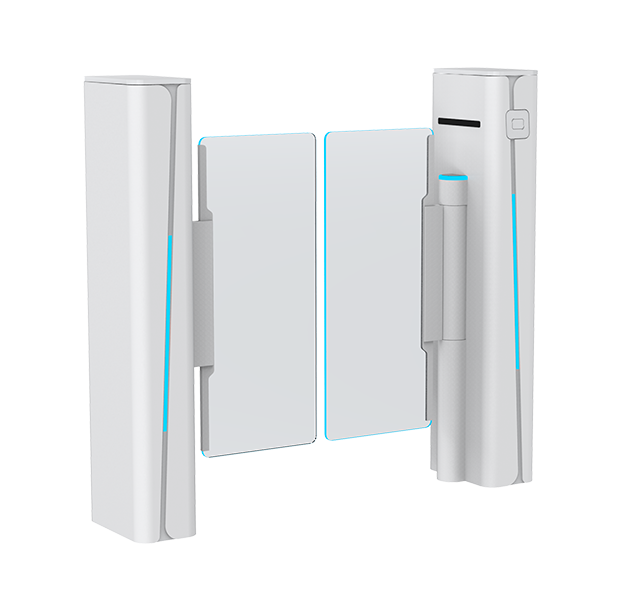

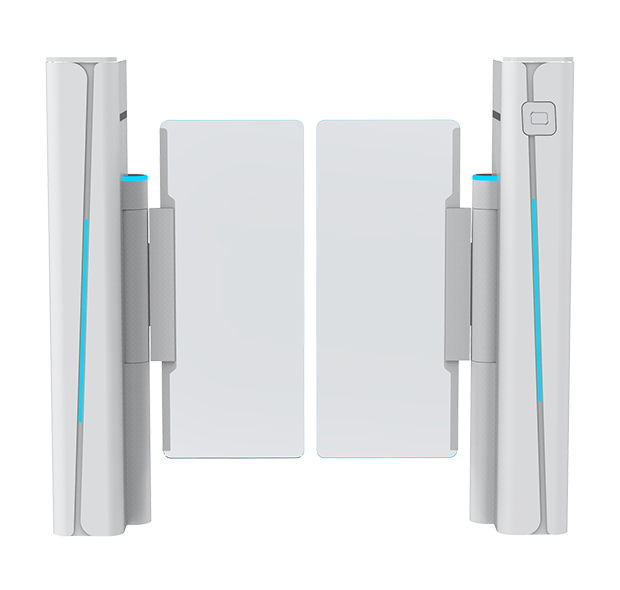

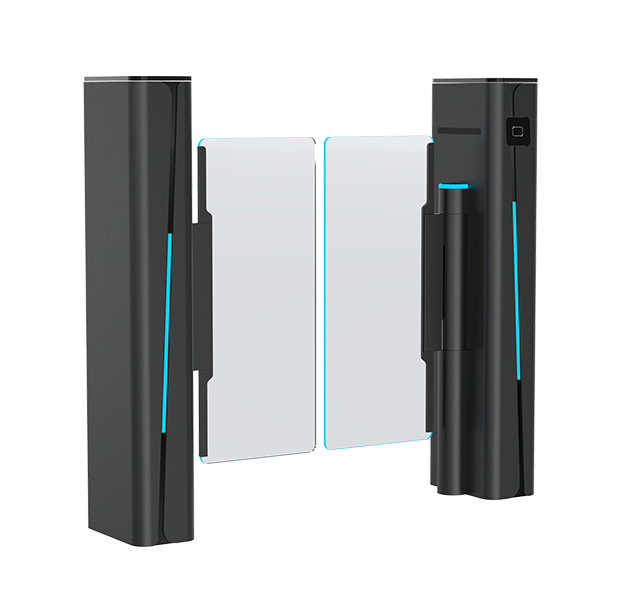

ID GATE 5300
Specifications
| Specifications | |
|---|---|
| Dimensionen | 1200 x 1061 x 300 mm |
| Material (housing) | Aluminum alloy |
| Glass panel | Transparent Polycarbonate (PC) |
| Power supply | 24 V / 500 W, 12 V / 3 A |
| Air switch | 2P |
| Passage width | 600 – 900 mm |
| Infrared sensors | 4 per pillar |
| Control system | Servo control system |
| Drive motor | Brushless servo motor |
| Operating temperature | -20°C ~ +70°C |
| Humidity | ≤90 % non-condensing |
Description
The ID GATE 5300 is an intelligent servo speed gate for secure pedestrian access control in medium to high traffic areas. It provides reliable passage management with anti-tailgating, anti-reverse logic, and infrared safety protection, supports RFID, code scanning, and biometric identification, and enables flexible one-way or two-way operation with easy integration into existing access control systems.
Accessories (Optional)
| Accessories | |
|---|---|
| Accessories (Optional) |
|
