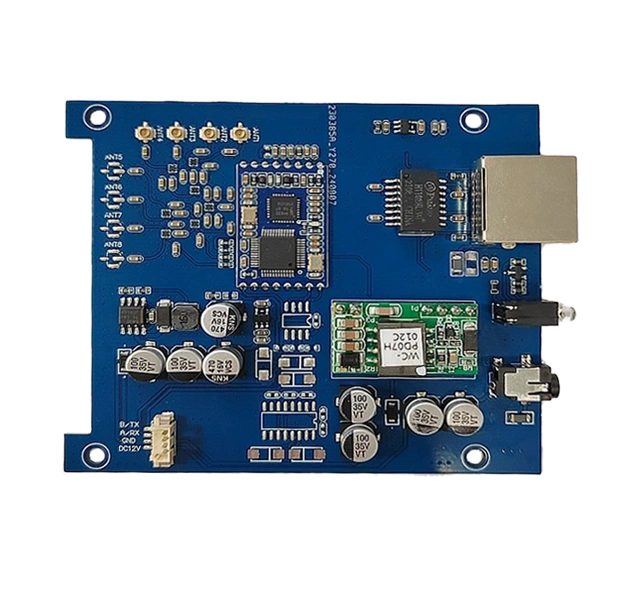

HF / NFC Embedded Module – M980
Specifications
| Electrical Specifications | |
|---|---|
| Power Supply | 7 ~ 24 Vdc |
| Power Consumption | < 150 mA, standby current < 2 mA (low power mode) |
| Operating Frequency | 13.56 MHz |
| Reading Distance | up to 10 cm* |
| Antenna | external |
| Baudrate | 9600 … 115200 bit/s (default 115200bps) |
| Antenna Connector | U.FL |
| Interface | RS485 |
| Connector | JST XH 2.0mm pitch |
| General Specifications | |
| Dimensions | 48 × 65 × 9.7 mm |
| Weight | 50 g |
| RT FX Speed | up to 848 kBd |
| Reader IC | NXP CLRC663 |
| Mechanical Specifications | |
| Material | FR-4, Green |
| Mounting Option | Screwing |
| Environmental Conditions | |
| Operating Temperature | -20 °C … +80 °C |
| Storage Temperature | -40 °C … +85 °C |
| Humidity | up to 95 %, non condensing |
| MTBF | 200‘000 h |
| Supported Standards / Tags | |
| ISO15693 and compatible | EM4135, EM4043, EM4x33, EM4x35, I-Code SLI/SLIX DNA, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
| SDK Information | |
Supported OS | Windows 7, 8, 8.1, 10 |
| Supported Languages | C# language |
| Demo Software | Windows |
| Applicable Standards | |
| EMC | EN 301489-1:2012-04 (v1.9.21) EN 301489-3:2013-12 (V1.6.1) |
| Radio Regulation | EN 300330-1:2015-08 (V1.8.1) EN 300330-2:2015-08 (V1.6.1) |
| Safety | EN 60950-1:2014-08 EN 62369-1:2010-03 EN 50364:2010-11 |
| RED | 2014/53/EU |
| RoHS 2 | 2011/65/EU |
| REACH | 1907/2006 |
| Certificates | CE |
*Reading Distance depends on Tag, Antenna and Environmental Conditions.´
Description
The iDTRONIC HF | NFC Embedded Module M980 is a high performance and low-cost Module for the integration into check-in counters, libraries, retail or shelving systems. With its cutting edge microcontroller and latest HF transceiver technology, the Module allows users to read and write 13.56 MHz transponders supporting the common RFID standard ISO15693.
Thanks to its 8 antenna ports the HF | NFC Embedded Module M980 achieves reading ranges of up to 10 cm (depending on type of transponder). Its serial-based interface RS485 allows an easy and fast integration into existing electronics or a fast paced new development of high-end identification applications.
iDTRONIC’s hardware comes with a useful SDK for the development of controller, Linux or Windows-based applications. Beside the documentation, command protocols and source codes, the SDK includes a Windows-based demo application with full functionality over the supported HF RFID standard.
Application areas
- Library
- Luggage Identification
- Retail
- Shelving Systems
- Lean Production
