ID GATE 1900

Highlights

Durable, high operational reliability and fast response
One-sided or two-sided operation
Indoor and outdoor
Automatic reset function
Automatic anti-panic function
Built-in LED indicators for continuity clearance
3 years guarantee

Specifications

Specifications

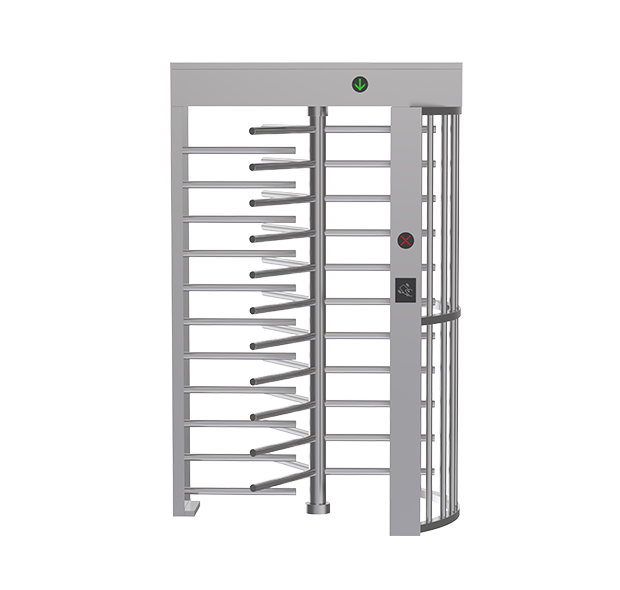

DimensionsSingle Without Roof:
1460 x 1250 x 2300mm
Single With Roof:
1460 x 1460 x 2300mm

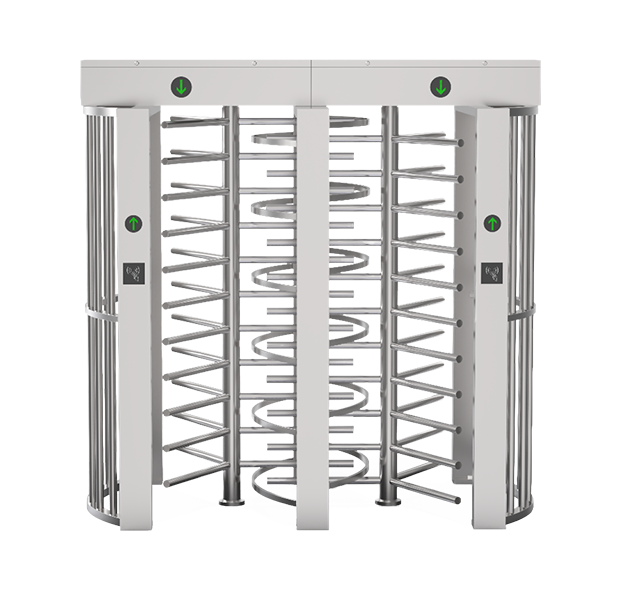

Double Without Roof:
2200 x 1250 x 2300mm

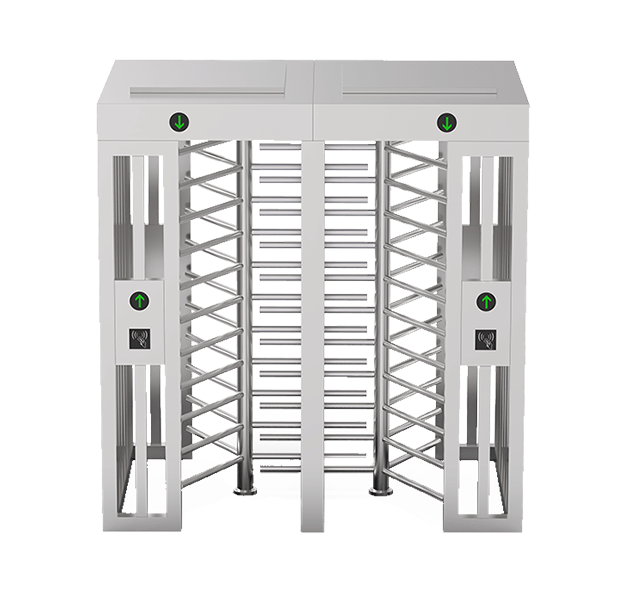

Double With Roof:
2200 x 1460 x 2300mm

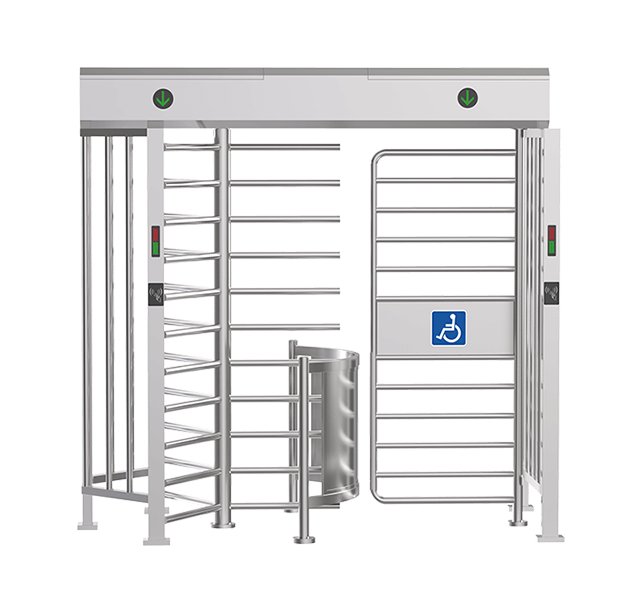

Barrier-free Without Roof:

2450 x 1260 x 2300mm

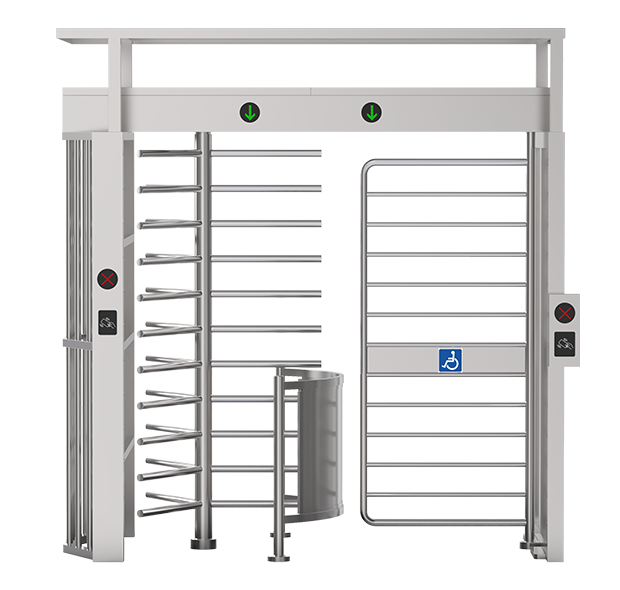

Barrier-free With Roof:
2450 x 1264 x 2580mm
MaterialStainless Steel 312
Power SupplyAC220V / 110V, 50/60Hz
Operating Voltage24V DC
Passage Frequency30 persons per minute
Emergency MechanismFree passage in the event of a power failure
Communication InterfaceRelaissignal, RS485
Operating LocationIndoor / Outdoor
Operating Temperature-15°C to +60°C
Humidity≤90%

Description

The ID Gate 1900 is a robust and reliable full-height turnstile designed for both indoor and outdoor use. It is particularly well-suited for security-sensitive areas such as swimming pools, fitness centers, parking facilities, airports, industrial sites, stadiums, and public transportation environments.

Accessories (optional)

Product Accessories
Accessories (optional)
  • iDTRONIC RFID Built-In R840 Ethernet
  • QR Code/ RFID Combi-Reader ID Ident 1500/2000
  • Integration of Third-Party Readers (z.B. MIFARE, LEGIC, EM, HID etc.)

Third reader installation on Request
