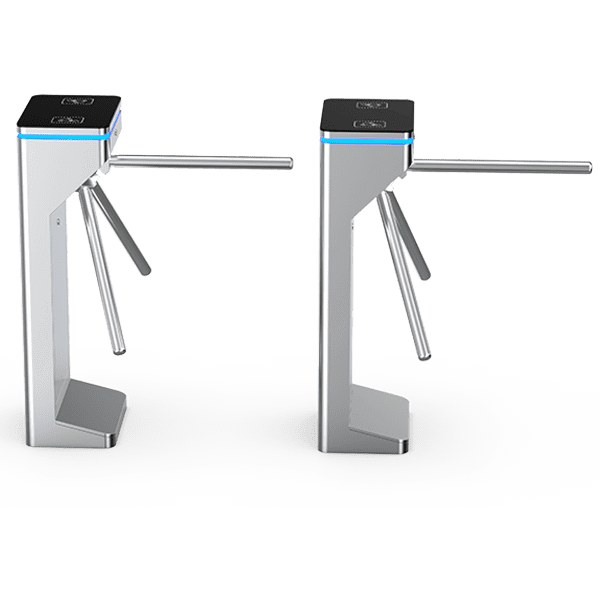

ID GATE 6200

Highlights

Durable, high operational reliability and fast response
Transponder or ticket-based input and output possible, alternatively free-turning output
Automatic anti-panic folding arms
Integrated LED indicators show the throughput direction
QR code reader / RFID reader possible
Indoor & Outdoor variant available
The ID GATE 6200 is also available as a portable version

Specifications

Specifications
Dimensions360 *260 * 980mm (L x B x H)
Passage width550mm, (Arm length: 500mm)
MaterialStainless steel 304 (IP44) Indoor
Stainless steel 312 (IP65) Outdoor
Power supplyAC230V/110V, 50/60Hz
Power consumption20W
Supply voltage24V DC
Passage frequency40 people per minute
Emergency mechanismAutomatic anti-panic folding arms
Communication interfaceTCP/IP, RS485, dry contact, relay signal
Operating temperature-15 °C – 60 °C
Optional
  • RFID reader (Mifare / EM / Hitag)
  • Barcode / QR Code Reader
  • Combined QR Code / RFID
  • Remote control (cable / radio)

Third reader installation on Request

Description

The ID GATE 6200 is a flexible and versatile turnstile for access control in various application areas such as office buildings, airports, public transportation, museums, stadiums, retail, and universities. It ensures reliable and effective access control for authorized individuals, thereby enhancing security.

The turnstile regulates access to sensitive areas and increases security in the mentioned application areas. If you‘re looking for a reliable solution for access control, then the ID GATE 6200 is a perfect choice.

Accessories (optional)

Product Accessories
Accessories (optional)
  • 2x RFID Reader (NXP MIFARE ® Ultralight, Classic 1k / 4k)
  • Third-party reader installation (e.g. MIFARE ®, LEGIC, EM, HID, etc.)
  • Remote Control (With and Without Cable)
  • Embedded Reader R840 Ethernet
  • Barcode/QR Code Reader with MIFARE ®
