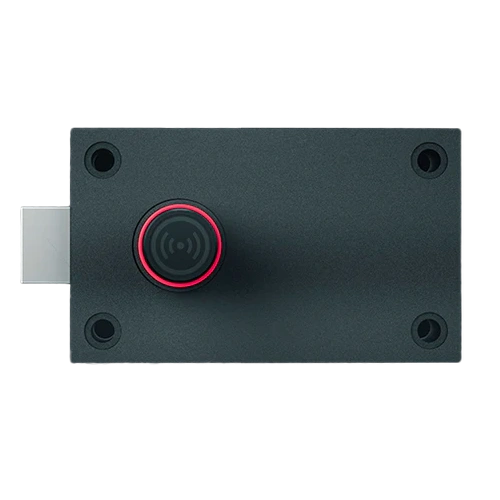

OTS 20 (BATTERYLESS)
Specifications
| Authentication Modes | |
|---|---|
| Authentication mode | RFID |
| Supported technologies | MIFARE® (DESFire EV1 & EV2, Ultralight, Ultralight C,Classic 1K/4K 4B and 7B Fudan F08 1K/4K UID – ISO/IEC 14443) |
| Reading | UID / Sector / Application / File / Page |
| Wearables | RFID cards, wristbands, FOBs, Technogym key, Stickers & Transponders |
| Reading range | Up to 2 cm (pressing the knob) |
| Usage Modes | |
| Free mode | Control up to 3 locks with a single wearable |
| Dedicated mode with autocancellation | Control up to 6 locks with one wearable (only one wearable per lock) |
| Dedicated mode without autocancellation | Control up to 6 locks with one wearable (multiple wearables per lock). |
| Multifunction mode | Control up to 3 free and 3 dedicated locks with one wearable |
| User Interfaces | |
| Lock status | Indication of locked and unlocked position |
| Communication Interfaces | |
| Communication standard | NFC |
| Encryption mode | AES 256 |
| Reading field range | Up to 2 cm (pressing the knob) |
| Number of maximum connections | 1 |
| Power Supply | |
| No battery required | Generates its own energy when using the lock |
| Enviroment | Eco-friendly as batteries are not required |
| Mechanical Characteristics | |
| Dimensions | 108 mm x 65 mm x 35 mm |
| Weight | 223g |
| Housing | Black PANTONE 426 C |
| Closing resistance | DIN 4547-2 Class C |
| Maximum tightening torque | 300 cN/m |
| Cycles | 60.000 cycles |
| Environmental Conditions | |
| Storage temperature | -15ºC to 60ºC |
| Function temperature | 0ºC to 42ºC (interiors) |
| Humidity | UNE-EN ISO 16750-4 / UNE-EN 600682-38, RH 96% |
| Protection class | IP52 according to DIN EN 60529 IK09 according to DIN EN 62262 |
Description
OTS 20 (Batteryless) system is an RFID electronic locking system principally used on fitness and wellness facilities, offices and universities.
This technology consists in interaction between a transmitter (key) and a receiver (lock). This system replaces the traditional mechanical key and cylinder.
Our locks meet all anchorage and measurement standards and, therefore, can replace old lock systems without having to modify cabinets or lockers.
