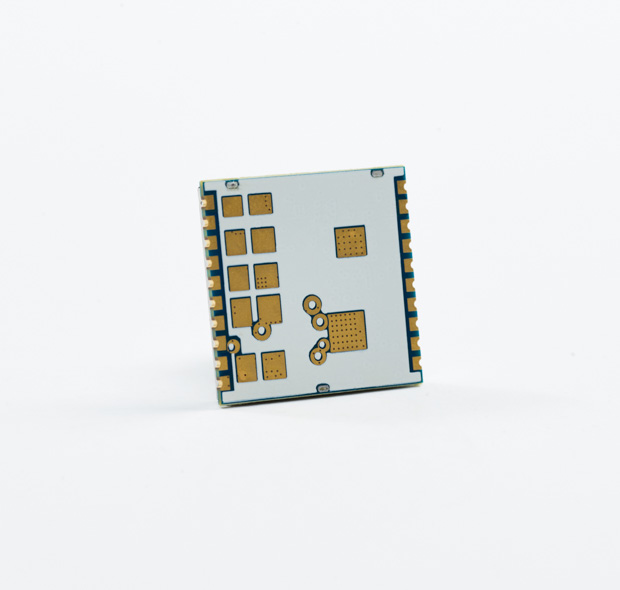

Embedded SMT Module UHF
M600

Highlights

RFID IC: Impinj E310 / E510 / E710
Supports EPC C1 GEN2 (ISO 18000-63)
Powerful RF Output: Up to 30dBm
High Reading Rate/Range: 350 – 1000 Tags/s & Up to 12 Meters
Small form factor / SMT ready
UART – TTL Interface

Specifications

Radio Specifications
Operating Frequency840…960 MHz, Configurations for
USA: 902…928 MHz (FCC),
EU: 865…868 MHz (ETSI)
RFID ICImpinj E310 / E510 / E710
RF TX Power+5…30 dBm, adjustable in steps of 1 dB
RF Sensitivity-73 dBm
Reading RangeUp to 9 meters*
RF Impedance50 Ω
Electrical Specifications
Power Supply3.6…5 Vdc
Power Consumption850 mA @ +30 dBm TX Power
50 mA Standby
50 µA Power Down Mode
ConnectorsSolder Joints
Communication InterfaceUART TTL port
Baudrate9600…921600 bit/s, 115200 bits/s factory default
GPIO
  • 2 Inputs TTL Levels:
    Logic low: < 0.8 V, minimum 0V
    Logic high: > 2 V, maximum 3.3 V
  • 2 Outputs TTL Levels:
    Logic low: maximum 0.4 V
    Logic high: minimum 2.9V, maximum 3.3
  • IO:
    The maximum output current of the port is 5mA
Mechanical Specifications
Dimensions28 × 28 × 4 mm
Weight10 g
MaterialPCB: FR4
Shielding frame: nickel-nickel copper
Shield cover: stainless steel

Environmental Conditions
Operating Temperature-20 °C … +55 °C
Storage Temperature-40 °C … +85 °C
Humidityup to 95 %, non-condensing
Supported Standards / Tags
ISO StandardISO 168000-63 (EPC Class 1 Gen 2)
Read Rate350 – 1000 tags/s
Tag Cache≥ 1000 Tags @ 12 Bytes EPC size
SDK Information
Supported OSWindows, Linux, Android
Supported LanguagesC, C#/.NET, Java
Demo SoftwareWindows

Other functions and details to be continued and upgraded.

Description

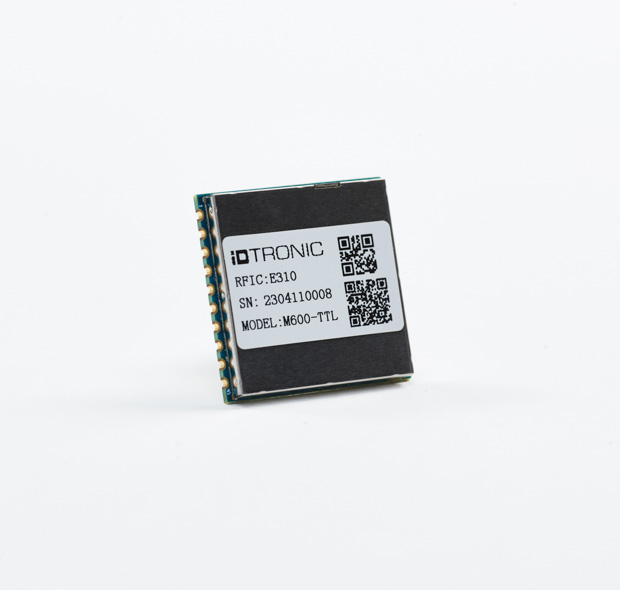

The iDTRONIC Embedded SMT Module UHF M600 is a high-performance UHF RFID module based on the IMPINJ New Generation reader chips E310/E510/E710. Manufactured as a surface-mounted technology (SMT) with a max. RF output power of 30 dBm and supporting real-time onboard temperature monitoring, this module is ideal for direct SMT assembly on PCB boards, enabling rapid and seamless integration, particularly in space-constrained designs such as PDA and desktop RFID devices.

It is equipped with UHF Technology EPC Class 1 Gen 2 (ISO 1800063) and is globally applicable with a frequency band of 840 – 960 MHz. The M600 UHF SMT Module has a single mono-static RF port as antenna interface that supports a power output of max. 30 dBm, which enables it to rapidly read between 350 and 1,000 tags per second (depending on the IC chip).

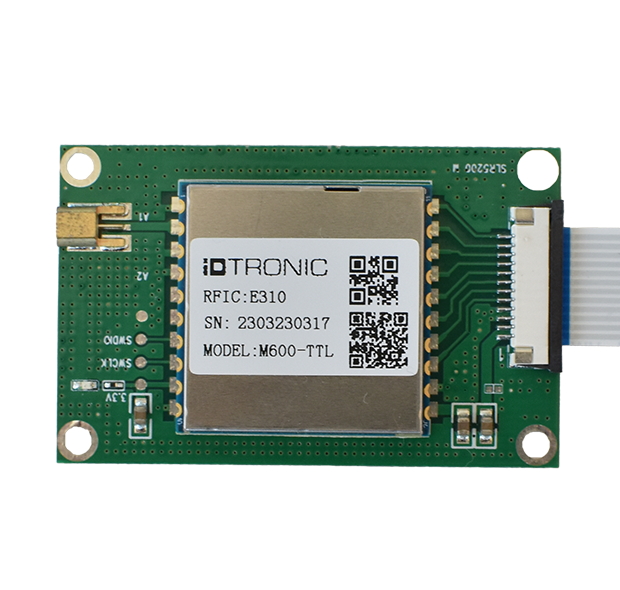

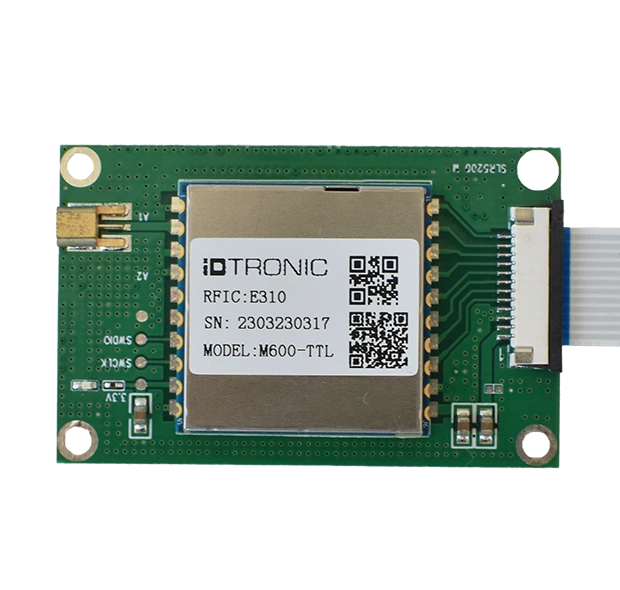

For added flexibility, the module is also available in combination with a Carrier Board, simplifying evaluation and integration in prototyping or development environments.

iDTRONIC’s hardware comes with a useful SDK for the development of controller, Linux or Windows-based applications. In addition to the documentation, command protocols and source codes, the SDK includes a Windows-based demo application providing full functionality over all supported UHF RFID standards.
