MPR Series
UHF Reader – IA
Specifications
| Electrical Specifications | |
|---|---|
| Power Supply | 7 – 24 Vdc |
| Power Consumption | < 50 mA, standby current < 1 mA, (low power mode) |
| Operating Frequency | UHF: 865 – 868 MHz (ETSI) (?) |
| Antenna | Integrated |
| Reader IC | MagicRF M100 |
| Reading Range | Up to 30 cm |
| RF Power | Up to 26 dbm |
| RF TX Speed | up to 848 kBd |
| Baudrate | 250 or 500 kbit/s |
| Interfaces | CANopen RS232, RS485, USB virtual, TCPIP PoE, Modbus |

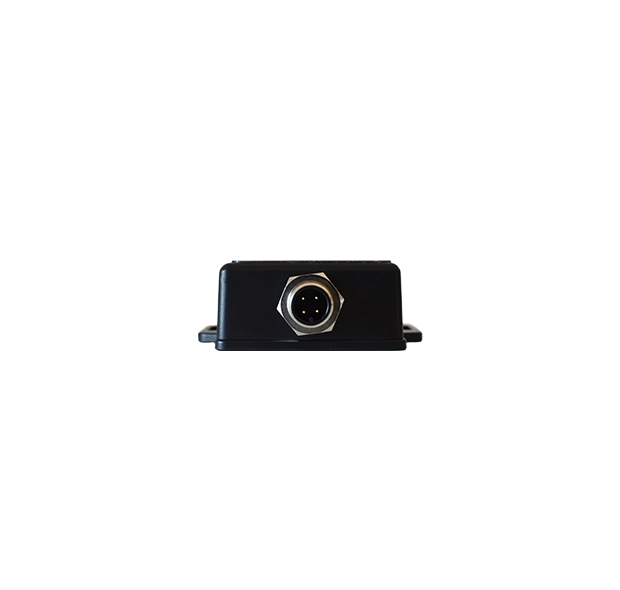

| Connectors | M12 Connector |
| Mechanical Specifications | |
| Dimensions | 81 × 53 × 24 mm |
| Material | ABS, Black gloss surface |
| Weight | 120 g |
| Environmental Conditions | |
| Operating Temperature | -20 °C up to +80 °C |
| Storage Temperature | -40 °C up to +85 °C |
| Humidity | up to 95 %, non condensing |
| MTBF | 200‘000 h |
| Protection Class | IP67 |
| SDK Information | |
| Supported OS | Windows 7, 8, 8.1, 10 |
| Supported Languages | C++, Binary command protocol |
| Applicable Standards | |
| EMC | ETSI EN 301 489-1 V2.2.3 (2019-11) ETSI EN 301 489-17 V3.3.1 (2024-09) |
| Radio | ETSI EN 300 330 V2.1.1 (2017-02) |
| Safety | EN IEC 62368-1:2024+A11:2024 |
| RoHS 2 | EU Guideline 2011/65/EU and 2015/863/EU |
| Health | EU Guideline 2011/65/EU and 2015/863/EU |
| Certificates | CE |
| Supported Standards / Tags | |
| Standard ISO 18000-6C, EPC Class 1 Generation 2 | |
*Reading Distance depends on Tag, Antenna and Environmental Conditions.
Description

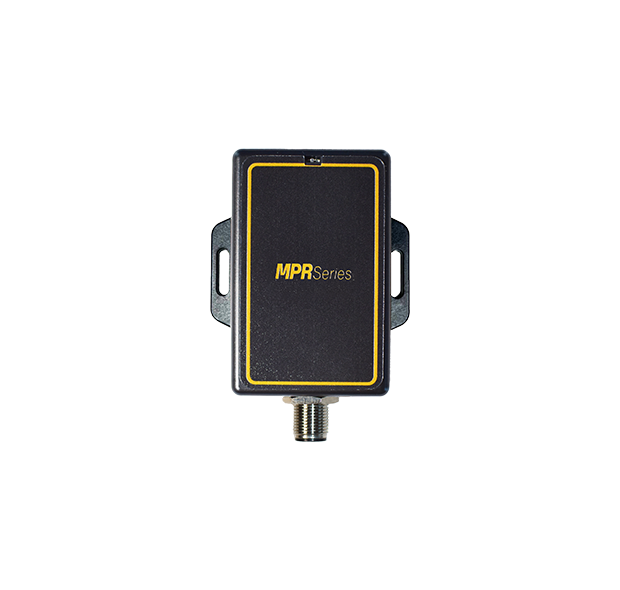

The iDTRONIC MPR Series UHF Reader IA is an advanced UHF RFID device designed for versatile use in industrial automation, logistics, and production environments. It supports reading and writing of UHF RFID tags (EPC GEN2 | ISO 18000-6C) and transponders, enabling flexible integration into a wide range of applications. Its robust design ensures reliable performance even in demanding operational conditions. An integrated status LED provides immediate visual feedback on the device’s operating state.
The MPR Series UHF Reader IA is certified according to RoHS 2 and REACH. It is supplied with a software development kit (SDK) for Windows systems. This supports the programming languages: Binary command protocol, VS2005 C++ Library. The SDK simplifies the integration into your existing systems.
Application areas
- Logistics
- Production Control
- Industrial Automation
