ID GATE 8400
Specifications
| Spezifikationen | |
|---|---|
| Dimensions | 980 x 920 x 1400mm |
| Material (housing) | Aluminum alloy |
| Glass panel | Acrylic arms |
| Power supply | 24V 500W |
| Input voltage | AC100V ~ 240V,50/60HZ |
| Passage width | 600 – 900mm |
| Passage frequency | 35 – 50 People per Minute |
| Infrared sensors | 6 pairs |
| LED | RGB light |
| Control system | Brushless control system |
| Drive motor | DC brushless motor |
| Operating temperature | -20°C ~ +70°C |
| Humidity | ≤90 % Keine Kondensation |
| IP | IP4X |
Description

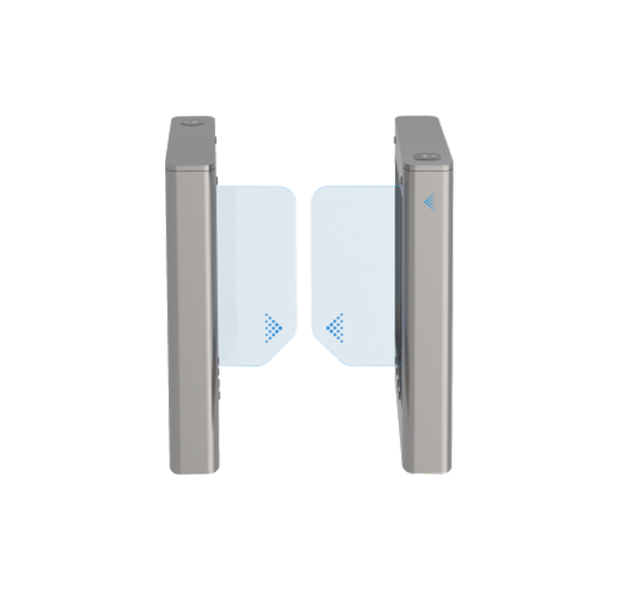

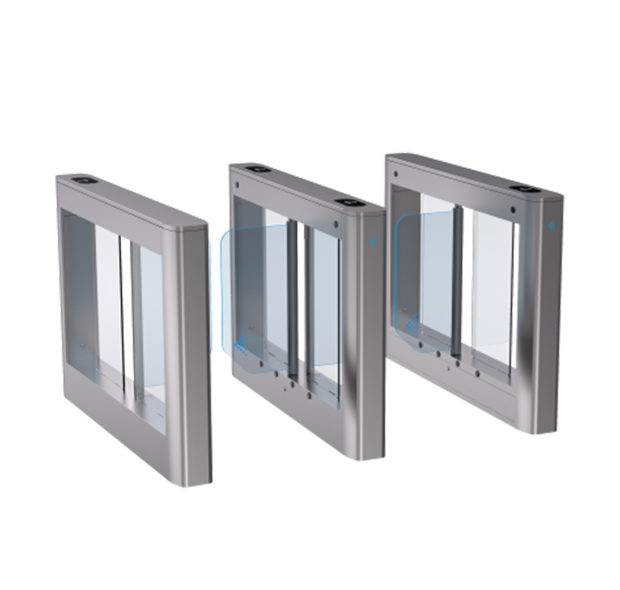

The ID GATE 8400 is a high-performance intelligent swing gate designed for secure and efficient pedestrian access control. Featuring a reliable brushless DC motor drive, integrated infrared safety sensors, and advanced anti-tailgating and anti-reverse detection, it ensures smooth, quiet, and controlled passage management.
With support for multiple authentication technologies—including IC/ID cards, QR scanning, and face recognition—the system integrates seamlessly into modern access control infrastructures, making it suitable for office buildings, public facilities, transportation hubs, and other high-security environments.
Accessories (Optional)
| Accessories | |
|---|---|
| Accessories (Optional) |
Third-party reader installation on request |
