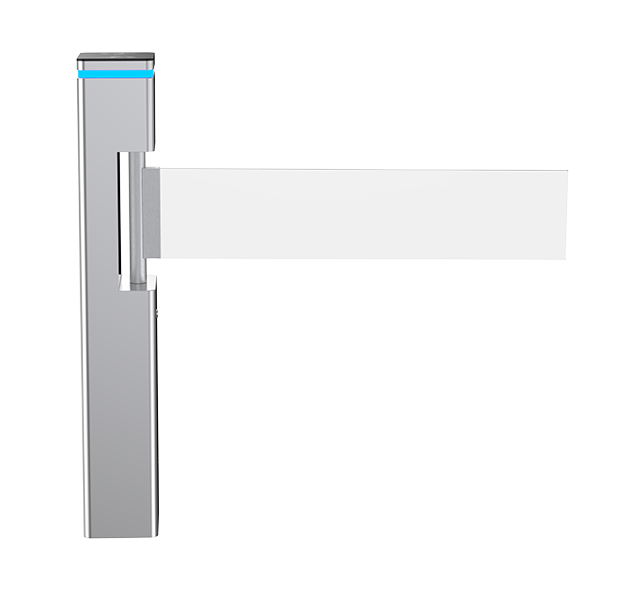

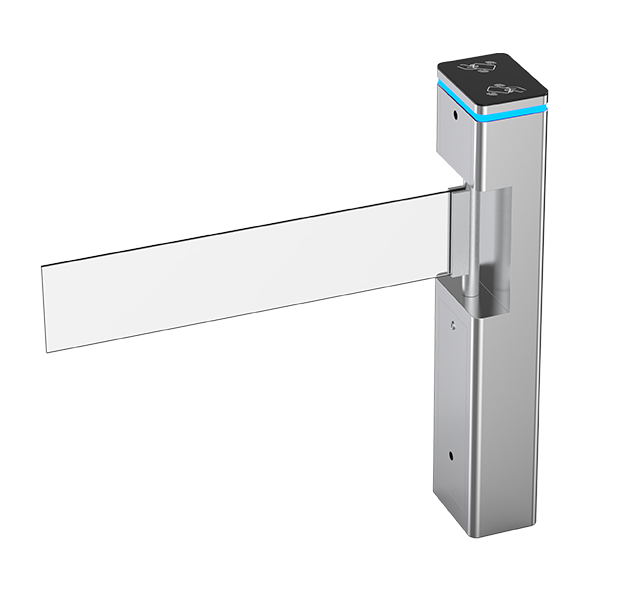

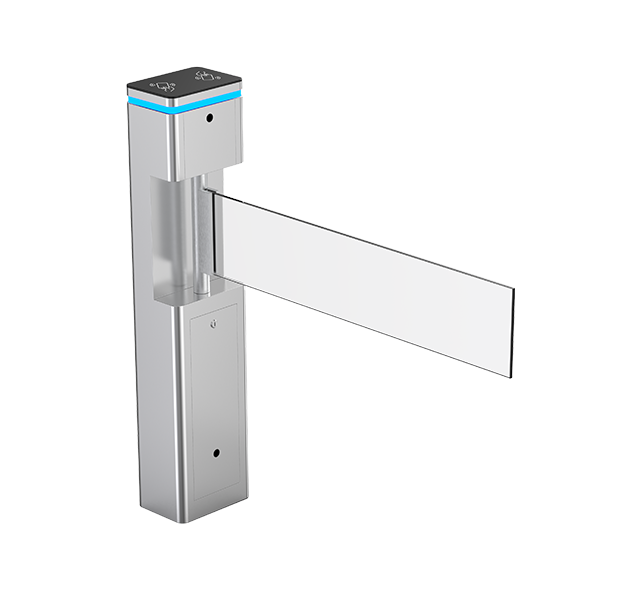

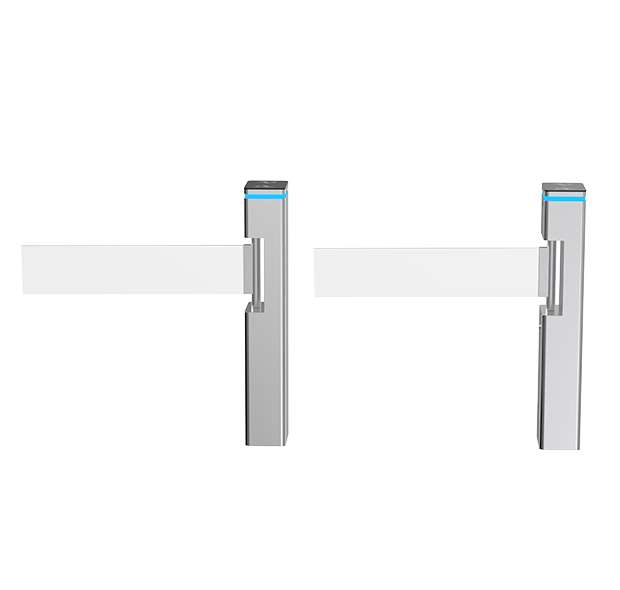

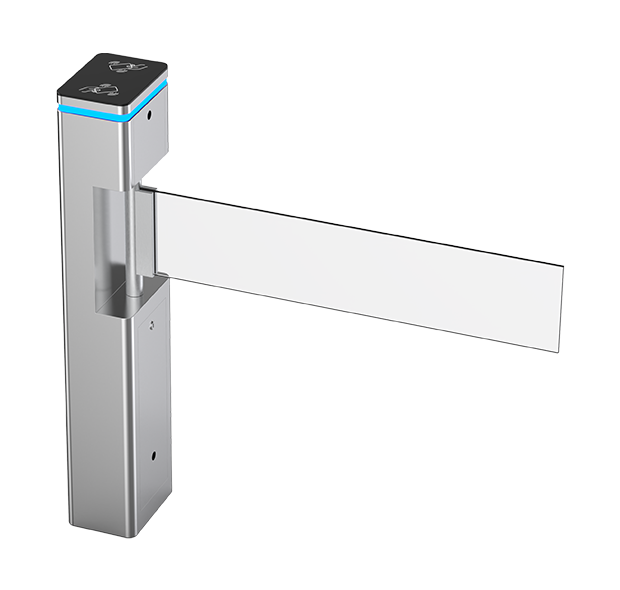

ID SWING GATE 1200

ID GATE 1200
ID GATE 1200 (5)
ID GATE 1200 (3)
ID GATE 1200 (4)

Highlights

High operational reliability and fast response time
Supports both one-way and two-way operation
Compatible with transponder- or ticket-based access
Automatic opening of doors in case of fire alarm or power failure
LED display for clear access indication
Ideal for fitness studios, spas, and health centers

Spezifikationen

Specifications
Dimensions230 x 165 x 1050 mm (L x W x H)
MaterialStainless steel (304) + Glass
Power supplyAC220V/110V, 50/60 Hz
Operating voltage24V DC
Passage Frequency40 people per minute
Emergency mechanismAutomatic open of the arms when power is turned of
Communication interfaceRelay signal, RS485
Operating LocationIndoor
Protection ClassIP65
Operating temperature-20 °C to 75 °C
Humidity≤90%
Scope of Delivery
  • Swing Gate made of Stainless Steel
  • Glass
  • Anchor Bolts (M12) + Nuts
  • Wired Remote Control (for testing purposes only)
  • Cleaning Kit

Description

The ID Swing Gate 1200 is a stylish indoor swing gate, ideally suited for use in fitness studios, wellness areas, health centers, and similar facilities. It provides secure and controlled access and impresses with its elegant design made of high-quality stainless steel and glass, seamlessly integrating into modern interior architecture.

Accessories (optional)​

Product Accessories
Accessories (optional)
  • iDTRONIC RFID Built-In R840 Ethernet
  •  QR Code/ RFID Combi-Reader  ID Ident 1500/2000
  • Remote Control (Wired /Wireless)
  •  Integration of Third-Party Readers (z.B. MIFARE, LEGIC, EM, HID etc.)

Third reader installation on Request
