Access Reader
ID ACCESS 1000
Specifications
| Electronic data | |
|---|---|
| Power supply | 12 VDC (±5 % stabilized) |
| Power consumption | < 180 mA (RFID active, relay on) |
| Operating frequency | 13,56 MHz |
| Reading range | up to 7cm* |
| Antenna | integrated |
| Interface | Ethernet TCP/IP |
| Write/Read | Max. 106 kbps |
| Relay | 11 normally open contact (NO) max. switching capacity 30W (1A at 30VDC resistive load) |
| Signal | Buzzer |
| Mechanical data | |
| Dimensions | 125 × 70 × 26mm |
| Material | ABS |
| Housing color | anthracite |
| Weight | 50 g |
| Environmental conditions | |
| Operating temperature | –25 °C … +70 °C |
| Humidity | 5 % bis 95 % |
| Supported standards / tags | |
| ISO14443A | Read/Write: MIFARE® Classic Mini / 1K /4K, MIFARE Ultralight®, MIFARE Ultralight® C, NTAG213 / 215 / 216 / 217 |
| ISO14443B | SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
| ISO15693 | I-Code SLI / SLIX, EM4135, EM4043, EM4x33, EM4x35, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
| SDK Information | |
| Programming language | C, binary command prof |
| Demo Software (Settings) | Windows |
* Reading range depends on chip type used and environmental conditions
Description

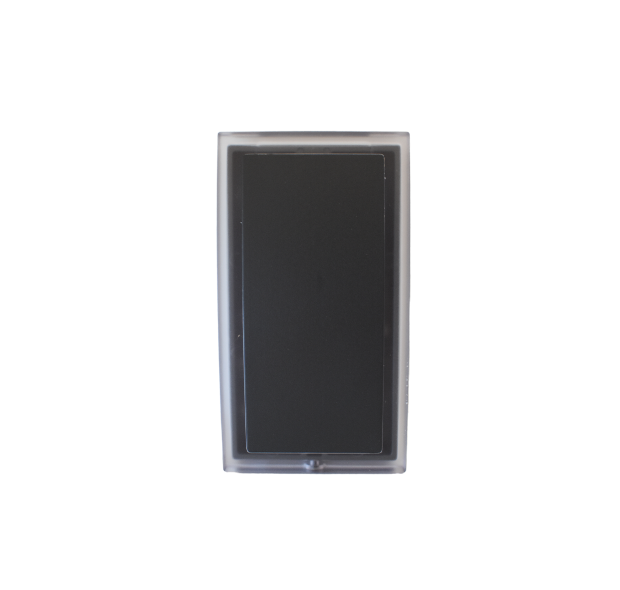

The ID ACCESS 1000 HF is a professional RFID reader and writer for RFID 13.56 MHz frequenices. It was especially developed for wall mounting beside doors or entrances and is also available as read-only version.
It is designed for indoor use and has a modern and elegant design with tricolor LED frame and buzzer.
It is available with Ethernet TCP/IP or RS485 interface for easy implementation and integration within exisiting networks. Thanks to its integrated relay, it is possible to switch doors automatically.
iDTRONIC’s ID ACCESS 1000 HF comes with a useful SDK for the development of controller, Linux or Windows based applications. Beside the documentation, command protocols, the SDK includes a Windows based demo application with full functionality over all supported HF RFID standard.
Application areas
- Access Control
- Remote Control
- Payment Systems
- Automation System
- Network Control System
