ID IDENT 5000
Specifications
| Technical Specifications | |
|---|---|
| Frequency | 13,56 MHz |
| Power Supply | USB-C 5V, up to 24 V DC, or PoE |
| Power Consumption | Max. 200 mA @ 5 Vdc, app. 1 W max |
| Relay | Max. switching power: 30W/37.5VA Max. switching voltage: 220Vdc/250Vac Max. switching current: 1A Max. carrying current: 1A Initial contact resistance: Maximum 100 mΩ (initial) Contact material: Silver alloy with gold overlay All contacts accessible: COM, NO, NC |
| QR-Module | Integrated on the mainboard |
| Reading Range | Cards: 0 – 5cm QR-Code: 0- 10cm |
| Interface | USB VCP, TCP/IP, Relay |
| Mechanical Specifications | |
| Outer Dimensions | 86,7 x 86,7 x 40 mm |
| Mounting Dimension | 71,4 x 70,4 mm |
| Weight | 90 g |
| Housing Material | ABS |
| Environmental Specifications | |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +80°C |
| Humidity | up to 95 %, non-condensing |
| Configuration Software | |
| Supported OS | Windows |
| 1D/2D Specifications | |
| Barcode Type | 1D : |
| Scope of Delivery | |
| ID IDENT 5000 |
|
| Supported Standards / Tags | |
| RFID HF | NFC 13,56 MHz | |
| ISO 14443 A and compatible | Read UID Only: |
Description

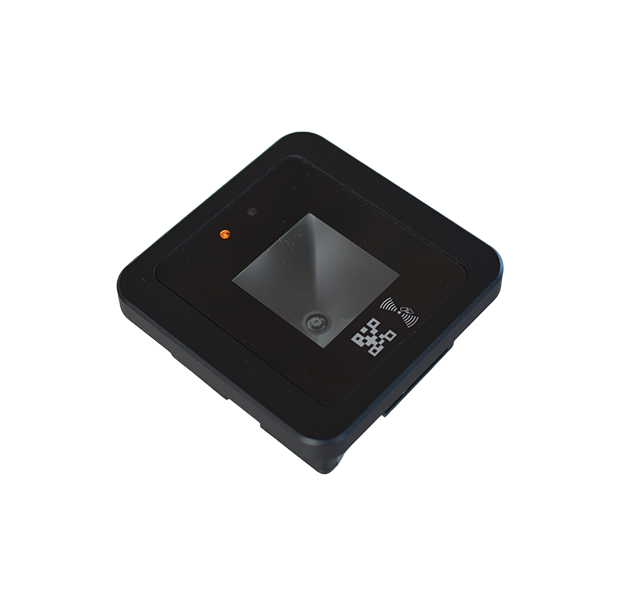

The ID IDENT 5000 from iDTRONIC is a compact and versatile Access Reader that combines HF | NFC RFID technology (13.56 MHz) with a powerful 1D/2D barcode scanner in one device.
Ideal for healthcare, fitness, retail, industrial, and parking applications, it ensures fast and secure identification through cards, tags, or QR codes. With flexible connectivity (USB VCP, TCP/IP, relay) and versatile power options (USB-C, 24 V DC, PoE), integration is simple and efficient.
Supporting a wide range of MIFARE® and NFC standards as well as all major barcode formats, the ID IDENT 5000 offers maximum flexibility. Its robust ABS housing, extended temperature range, and low power consumption make it a reliable solution for modern acecss control and self-service environments.
The ID IDENT 5000 can be integrated into turnstiles of the series:
• ID GATE 5600
• ID GATE 5800
• ID GATE 8800
• and many more…
Application areas
- Access control
- Pools / Spas / Gym
- Industrial Sites
- Parking / Barriers
- Cultural institutions (e.g Museums)
