SPEED GATE 5600
Specifications
| Spezifikationen | |
|---|---|
| Dimensions | 600 x 130 x 980mm |
| Material | Top T=8.0mm Body T=3.0mm |
| Arm Material | 10mm clear acrylic / Tempered Class |
| Pass Width | 600 – 900mm |
| Height from Ground (Upper Part) | 900mm |
| Height from Ground (Lower Part) | 245mm |
| Movement | Servo Speed Gate Movement |
| Power Supply | 24V / 500W |
| Input Voltage | AC100V ~ 240V, 50/60HZ |
| Drive Unit | Bruschless Servo Motor |
| Pass Rate | 35 – 50 People per Minute |
| Open Speed | 0.5s / 1.5s |
| Sensor | 6 pairs |
| Clutch size | ф=80mm |
| Pilot Lamp | RGB light |
| Communication Mode | RS485 |
| Controls | Servo Control System |
| Noise | ≤65dB |
| Temperature | -20°C ~ +70°C |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor |
Description

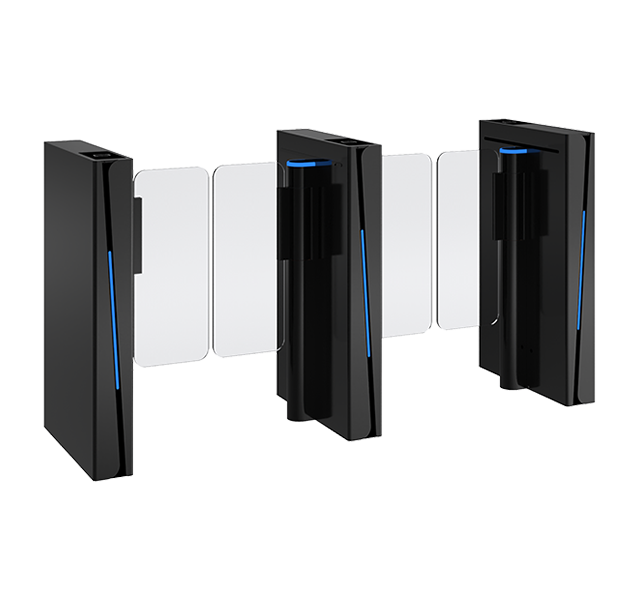

The Speed Gate ID GATE 5600 is a versatile access control solution that can be used in a variety of applications. In gyms, spas and health centers, the ID GATE 5600 can be used to restrict access and increase security.
Thanks to its innovative technology, ID GATE 5600 provides fast processing and control of access to protected areas. Thus, it creates a safe environment for visitors and authorized persons.
