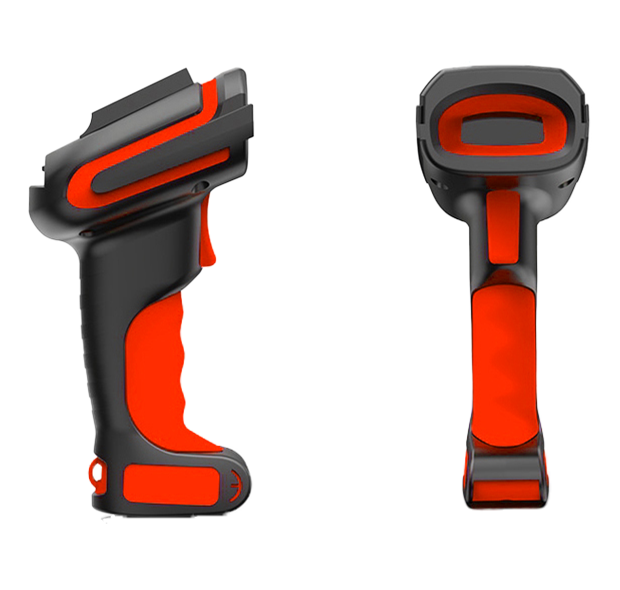

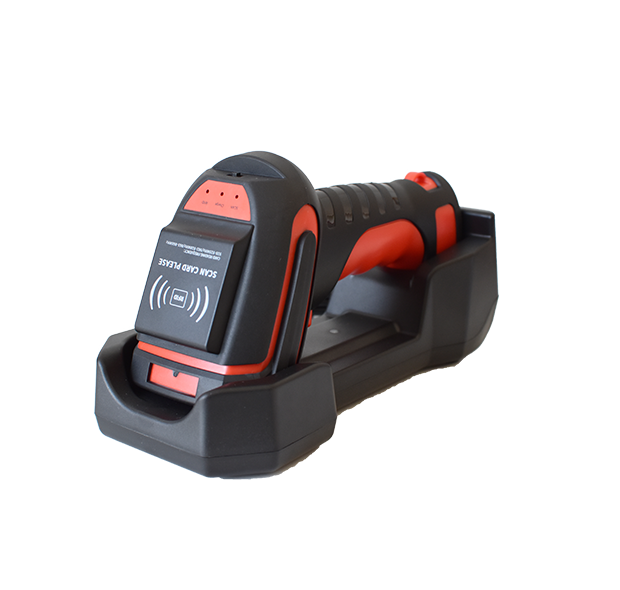

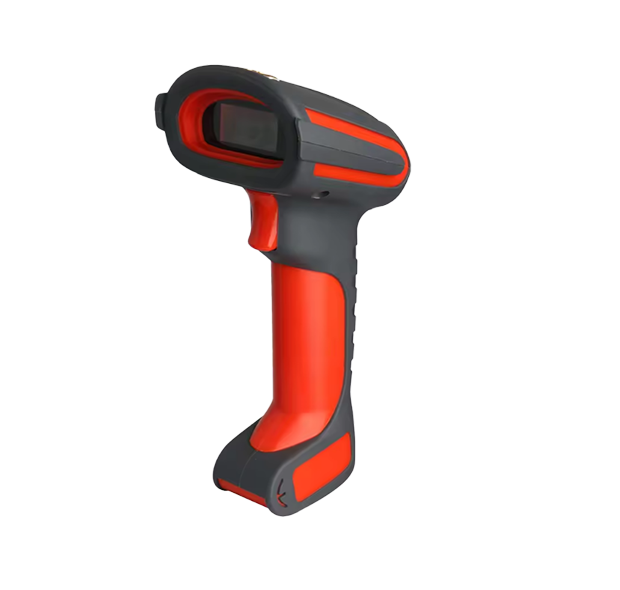

UHF RFID Scanner
ID SCAN H3
Specifications
| Electrical Specifications | |
|---|---|
| Frequency | 902 – 928 MHz (US) 865 – 868 MHz (EU) |
| Read range | 2m |
| Reading speed | 0.1s |
| Scanning Rate | 120 frames per second |
| Operating Time |
|
| Internal Storage | 16 MB |
| Extended Memory | 0 – 2.5 MB |
| Resolution | 1280 x 800 |
| Battery capacity | 2600mAh |
| Interfaces | USB / 2.4G / Bluetooth |
| Sensor | 1 million global CMOS |
| Mechanical Specifications | |
| Dimension | 170 x 103 x 73mm |
| Material | ABS + PC |
| Weight | 278g (without base wire) |
| Drop Resistance | Up to 2.5m on concrete |
| Environmental Specifications | |
| Operating Temperature | 0°C ~ +50°C |
| Storage Temperature | 40°C ~ +60°C |
| Protection Class | IP54 |
| Working Humidity | 5% – 95% (no condensation) |
| 1/2D Barcode Imager | |
| 1D Barcode | EAN, UPC, CODE 39, CODE 93, CODE 128, UCC/EAN 128, CODABAR, INTERLEAVED 2 OF 5, ITF-6, ITF-14, ISBN, ISSN, MSI-PLESSEY GSl DATABAR, CODE 11, 1 N DUSTRIAL 25, GSl COMPOSITE STANDARD 25, PLESSEY, MATRIX 2 OF 5 |
| 2D Barcode | QR CODE, DATA MATRIX, PDF417, AZTEC, MICRO QR, MICRO PDF417, QR CODE, DATA MATRIX, PDF417, AZTEC, MICRO QR, MICRO PDF417 MAXI CODE, han letter codes |
| Supported Standards Tags | |
| Standard ISO 18000-63 (EPC Class 1 Generation 2) E.g: Alien Higgs, Impinj Monza, NXP UCODE, etc. | |

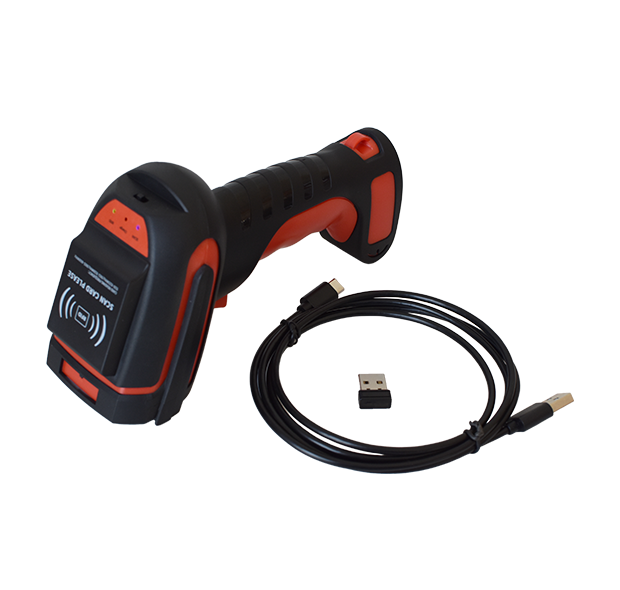

| Scope of Delivery | |
| |
Description
The ID SCAN H3 UHF RFID Scanner is a versatile and durable device, designed to combine powerful UHF RFID performance with advanced 1D/2D barcode scanning. With its intelligent dual-function capabilities, it ensures fast and accurate data collection for a wide range of industrial, retail, and public service applications.
The scanner supports multiple communication interfaces – USB, 2.4G wireless, and Bluetooth – providing flexible connectivity and plug-and-play integration without the need for drivers. With a wireless transmission range of up to 30 meters, it adapts seamlessly to various workflows.
Thanks to its multi-mode scanning options (UHF only, barcode only, or combined UHF + barcode), the ID SCAN H3 excels at handling diverse identification tasks. It is equipped with a high-sensitivity CMOS image sensor, adaptive infrared, and LED fill-light technology, ensuring accurate reading of low-quality barcodes and electronic tags. Additionally, its internal memory supports offline data storage for uninterrupted operation.
Application Areas
- Logistics Applications
- Asset Tracking
- Healthcare
- Retail
