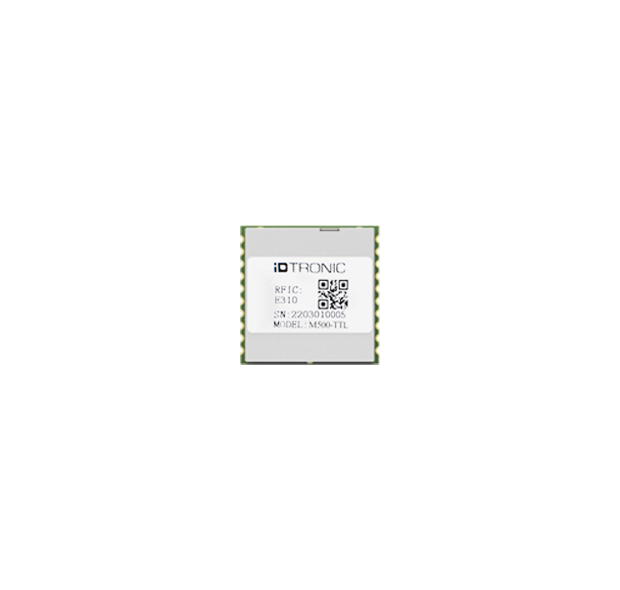

The iDTRONIC Embedded SMT Module UHF M500 is a high performance UHF RFID module based on the IMPINJ New Generation reader chips E310/E510/E710. Manufactured as a surface-mounted technology (SMT) with a small form factor, this module is ideal for direct SMT assembly on PCB boards, enabling rapid and seamless integration, particularly in space-constrained designs such as PDA and desktop RFID devices.

With a maximum RF output power of 27 dBm and support for real-time onboard temperature monitoring, it delivers reliable performance in a compact design. It is equipped with UHF Technology EPC Class 1 Gen 2 (ISO 18000-63) and is globally applicable with a frequency band of 840 – 960 MHz. The M500 UHF Module has a single mono-static RF port as antenna interface that supports a power output of max. 27 dBm, enabling read rates of up to 300 tags per second (depending on the IC chip).

For added flexibility, the module is also available in combination with a Carrier Board, simplifying evaluation and integration in prototyping or development environments.

iDTRONIC’s hardware comes with an SDK for the development of controller, Linux or Windows-based applications. In addition to the documentation, command protocols and source codes, the SDK includes a Windows-based demo application providing full functionality over all supported UHF RFID standards.

Application areas

• SMT assembly on PCB boards
• Integration into mobile devices
