Tablet C10

Highlights

UHF, HF or NFC
Fast 1D/2D Barcode Imager
WLAN | WWAN | Bluetooth Vo-LTE, GNSS
Android™ 12 “Snow Cone“
IP67 Protection Class
10.000 mAh Battery*
10.1“ Gorilla Glass Touchscreen

Specifications

Electrical specifications
Battery10000mAh rechargeable lithium
polymer battery (removeable)
Standby > 500h (Only with the host battery installed)
Working time > 12h (It depends on usage and network
environment) Charger time 3h
InterfaceUSB 2.0 Type-A * 1
Fingerprint ReaderMinistry of Public Security
certified fingerprint/ FBI certified fingerprint
module
RAM | ROM6GB RAM + 128GB ROM
Memory6GB, Optional 8GB
Storage128 GB
PSAMPSAM1 1x
RJ45100 mb/s transfer rate speed
HDMI portHDMI 1x
POGO Pin9pins Pogo Pin 1x
SensorG-sensor,
Vibrating motor
Reading Distance2 to 5 cm
Mechanical conditions
Dimensions274.9 x 188.7 x 23.1mm
Weight1034 g without battery
1140 g with battery
ColorBlack
GPUAdreno 506 1920 × 1200 @ 60 fps
CPUMT8788, ARM 8core 2.0GHZ
64-bit Octa-core
CameraFront 5.0MP
Rear 13.0MP, autofocus with flash
Display10.1-inch TFT screen 16:10
1920×1200 Resolution
500nits
60HZ
Touchscreen5/10 dot capacitive screen
Drop SpecificationsWithin the scope of operation, 6 sides
are subjected to the impact of 1.5m
falling to the concrete
SIM CardSim Card Solts 2x
Environmental conditions
Operating Temperature– 20°C up to 60°C
Storage Temperature– 30°C up to 70°C
Humidity95%, non-condensing
Protection ClassIP67
Communication specifications
WLAN2.4 g / 5g dual band, support 802.11
a/ B/ g/ N/ AC/ ,IPv4, IPv6
BluetoothBluetooth 5.2
transmission distance Max: 10m
WWANLTE FDD: B1/B2/B3/B4/B5/B7/B8/
B17/B20/B28A/B28B

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8 LTE

TDD:B38/B39/B40/B41

GNSSGPS, BEIDOU, GLONASS A-GPS
Vo-LTESupport VO LTE HF video voice call
1D/2D barcode imager
1DUPC / EAN,
Code129,
Code39,
Code11,
Codabar,
MSI
2DQR,
PDF417,
Micro QR,
RSS,
Aztec,
Maxincode
SDK information
Supported OSAndroid 12.0 (64 bit)
Certifications
CertificationsCE, FCC
Supported standards
ISO 14443 A
ISO 14443B
ISO 15693
ISO 18092

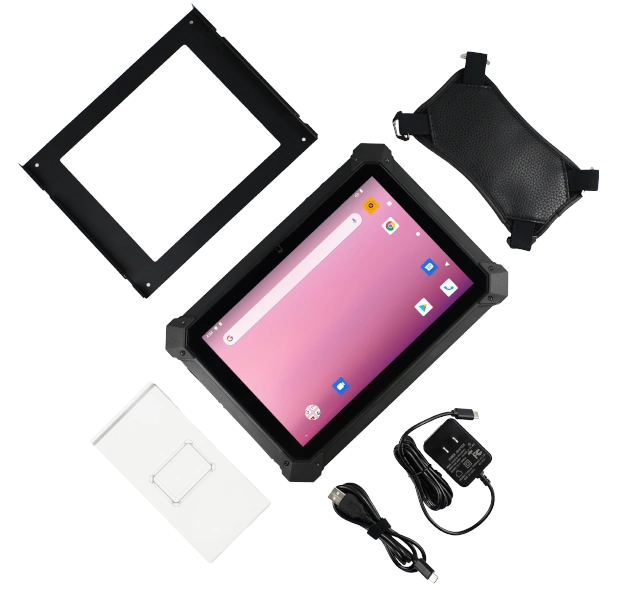

Scope of delivery
Standard
  • 1x Original Packaging,
  • 1x Tablet,
  • 1x USB data cable,
  • 1x Charger,
  • 1x Wrist strap
Accessories1x Wall Mount

Description

The C10 Tablet from iDTRONIC is an advanced solution in rugged tablet computing, designed for demanding applications in construction, field sales, logistics, stock management, public safety, and retail. This powerful tablet combines modern technology with a durable design, built to withstand the daily demands of challenging environments.

With the C10 Tablet, you can enhance efficiency and productivity in areas where traditional devices fall short. The tablet supports various configurations with barcode and RFID modules, allowing it to be tailored to your specific requirements. For inventory control and reporting, the device can be equipped with a 2D barcode imager, making data capture even easier and more precise.

The C10 Tablet also offers modern connectivity options, ensuring you can access and process your data anywhere. Additionally, the provided Android SDK allows for seamless integration of the tablet into your existing systems, further optimizing the efficiency of your workflows.
