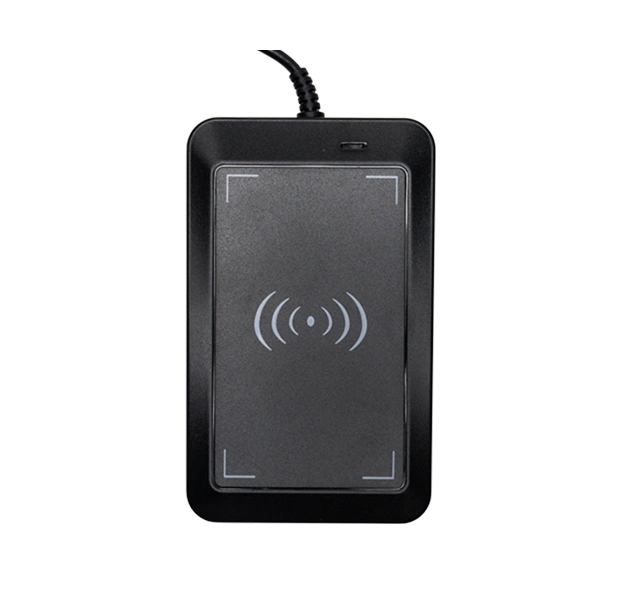

Desktop Reader – NEO 2
Specifications
| Electrical Specifications | |
|---|---|
| Power Supply | USB VCP + HID |
| Power Consumption | <200 mA |
| Operating Frequency | HF | NFC | LEGIC: 13.56 MHz LF: 125 kHz |
| Reading Distance | 3 cm* |
| Standard UID output | ISO 14443A UID LSB |
| Antenna | integrated |
| Status | 1 Bi-color LED, 1 Buzzer |
| Interface | USB 2.0 VCP/HID (Plug-and-play), CH340E Chip, PC/SC |
| Connections | 120 cm long cable with USB- Type-A plug |
| Mechanical Specifications | |
| Dimensions | 115 × 70 × 17 mm without USB cable |
| Weight | 90 g incl. USB cable (Length: 120 cm) |
| Housing | ABS (black) |
| Environmental Conditions | |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -20 °C to +80 °C |
| Humidity | up to 95 % non-condensing |
| Supported Standards / Tags RFID HF | NFC | LEGIC: 13.56 MHz | |
| ISO 14443 A and compatible | Read/write: MIFARE® Classic/1K/4K, MIFARE Ultralight®/C, MIFARE® DESFire®EV1/2, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x Read UID only of all other ISO14443A RFID tags |
| ISO 14443 B and compatible | SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176 |
| ISO 15693 and compatible | EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity) |
| ISO 18000-3M3 | I-Code ILT-M |
| LEGIC RF-Standard | Full read/write operation: LEGIC Advant; LEGIC Prime Smart card cards with Card in Card (CIC) technology LEGIC Advant type AFS 4096-JP with loaded LEGIC SM4200: Segmentation
|
| Supported Standards / Tags RFID LF: 125 kHz | |
| Read-only | EM4200 and compatible |
| FDX-B | Read information |
| Read/write | Hitag-1, Hitag-S |
| SDK Information | |
Supported OS | Windows XP, Vista, 7, 8, 8.1, 10 |
| Supported Languages | Binary command protocol, VS2005 C++ |
| Demo Software | Windows |
*Reading Distance depends on Tag, Antenna and Environmental Conditions.
Description
Desktop Reader – NEO 2 with HID + VCP for IoT Areas
The HF | NFC | LEGIC | LF Desktop Reader – NEO 2 is a modern and compact plug-and-play RFID reader with USB 2.0 interface. The USB RFID Reader is the perfect RFID reader for the latest enterprise IoT applications and is ideal for a wide range of applications in retail, telecommunications, banking or healthcare.
Adjustable data output with HID or VCP
This new versatile RFID reader supports two modes of operation via USB: a virtual COM port (VCP) or a human interface device (HID).
Der The VCP mode has full read and write access. The RFID Desktop Reader NEO 2 HF is designed for IoT applications and can be easily integrated into any operating system.
The HID mode is a keyboard emulation mode. In addition to different UID (serial number) formats, the RFID reader can also be set to read different parts of the user’s memory. The HID mode is great for web applications in heterogeneous IT cloud environments.
The integrated buzzer + LED signal indicate successful tag communication.
Optional with PC/SC interface
We additionally offer an interface with PC/SC (= Personal Computer/Smart Card).
The PC/SC interface is a flexible connection between a smart card reader and the computer. PC/SC is derived from the terms “Personal Computer” and “Smart Card”. Possible smart cards are customer cards, employee ID cards, health insurance cards, NFC-based EC or credit cards. Due to the integrated PC/SC function, the RFID reader validly reads all stored data on the chip of the card.
Advantages
- Can be integrated into any operating system (platform and manufacturer independent).
- Traceability of document changes
- Secures authentication against unauthorized access
- Protects viewing and editing of confidential documents
Supported RFID transponders & RFID tags
The HF | NFC | LEGIC Desktop Reader – NEO 2 supports the ISO standard ISO/IEC 14443A/B, ISO 15693 and ISO 18000-3M3. It reads RFID transponders and RFID tags with MIFARE® Classic, MIFARE® DESFire, NTAG, EMxxxx and I-Code ILT-M chip. The LEGIC version supports all common LEGIC Advant + Prime chips.
The reading range is up to 3 cm – depending on tag orientation and transponder type.
The LEGIC RF standard provides full read and write access for all LEGIC Prime and Advant transponders, tags and smart cards with Card in Card (CIC) technology of the LEGIC Advant type AFS 4096-JP. Due to the integrated SM4200 chip, the Desktop Reader NEO 2 is also able to read UIDs with MIFARE® chip type Classic, Mini, DESFireEV1, Plus S/X, Pro X, Smart MX & Ultralight. Another function is the reading and writing of already segmented LEGIC transponders suitable. Optionally, the RFID reader is also available with an SM4500 chip for additional segmentation and initialization of LEGIC transponders and the generation of master tokens. The power consumption of the SM4xxx security modules from LEGIC can be reduced to a minimum thanks to the patented wake-up function.
It is delivered with a software development kit (configuration software) for Windows systems. This supports the programming languages: Binary Command Protocol, VS2005 C++ Library. The SDK simplifies with help the connection to your existing systems.
Application areas
- Point of Sales (POS)
- Point of Care (POC)
- Single Sign On (SSO)
- Document Management
