RFline Series
UHF Long Range Reader – E4
Specifications
| Electrical Specifications | |
|---|---|
| Reading Range | > 10 m |
| Operating Frequency | 865–868 MHz (ETSI) |
| Power | 10 – 24 VDC (M12 5-Pin) or POE (M12 8-Pin) |
| GPIO | 4 inputs, 4 relay outputs (24VDC/1A, M12 12-pin) |
| Antenna | 3 R-TNC (50 Ohm) antenna ports (1 internal, 3 external) |
| Interface | RS232, TCP/IP POE, Canbus (SAE J1939) |
| Reader IC | Impinj E710 |
| RF Output Power | Adjustable with up to 33 dBm (1 dB steps) |
| RF Sensitivity | Up to -93 dBm |
| Read Rate | > 950 tags/sec |
| Tag Cache | > 950 tags (12-byte EPC) |
| Mechanical Specifications | |
| Dimensions | 204 x 204 x 75 mm (204 x 204 x 95 mm with mounting studs) |
| Material | Metal |
| Mounting | flat surface or pole, 4 mounting studs for accessory fastening |
| Protection Class | IP67 |
| Environmental Conditions | |
| Operating Temperature | -25 °C up to +55 °C |
| Storage Temperature | -25 °C up to +85 °C |
| Humidity | up to 95 %, non-condensing |
| SDK Information | |
| Supported OS | Windows |
| Supported Standard / Tags | |
| ISO Standard | ISO 18000-63 (EPC Class 1 Gen 2) |
| Radio | EN 302 208 |
| EMC | EN 301 489 |
| Safety | EN 62368-1, EN 50364 |
| Cybersecurity | EN 18031-1 |
| Environment | EN 61373 Cat 1B, EN 45545-2, EN 50155, EN 60068-2-30, Salt Mist EN 50155 |
| Certificates | CE |
Description

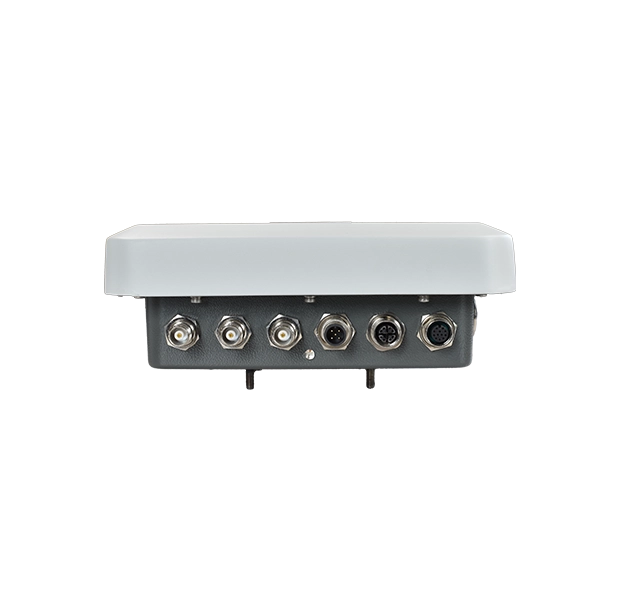

RFline E4 is designed for demanding industrial and logistics applications, ideally suited for reading distances > 10 meters. Equipped with rugged M12 connectors and a robust housing, it is the ideal solution for integration into machines, forklifts, and conveyor systems.
The device is powered by the latest IMPINJ E710 reader chip, offering excellent read performance and high flexibility for industrial and IoT environments. Supporting UHF RFID technology EPC Class 1 Gen 2 (ISO 18000-63) within a frequency range of 865–868 MHz, the RFline E4 enables reliable and fast identification processes.
With up to 33 dBm RF output power via a mono-static antenna port, the reader achieves read rates of > 950 tags per second depending on the tag IC used. Real-time temperature monitoring ensures stable operation, even under challenging environmental conditions.
iDTRONIC provides a comprehensive Software Development Kit (SDK) for seamless integration into Linux, Windows and controllerbased systems. The SDK includes full documentation, command protocols, source code examples and a user friendly Windows demo application.
Application areas
- Industry 4.0 devices
- Logistics & Asset Tracking
- Retail / Inventory Management
