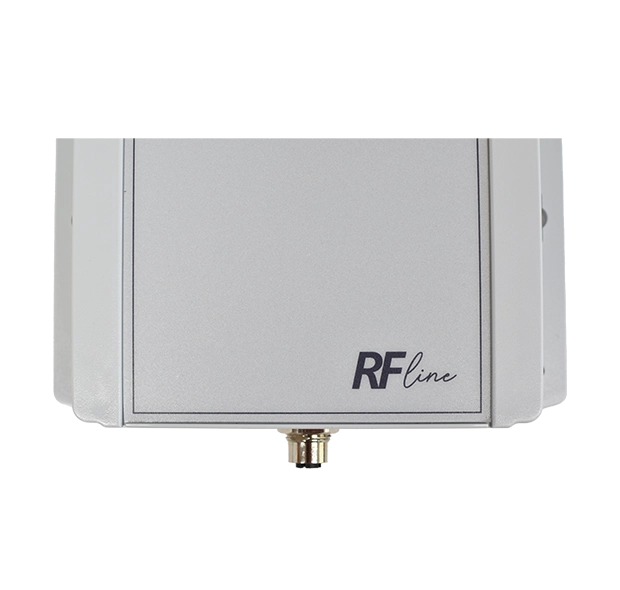

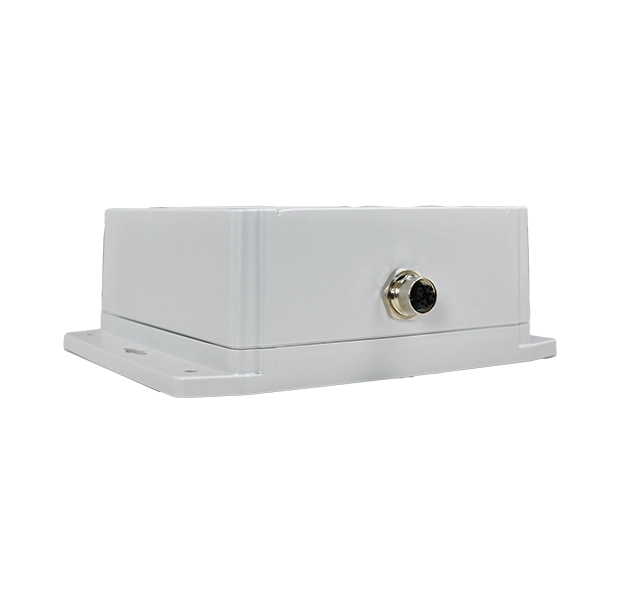

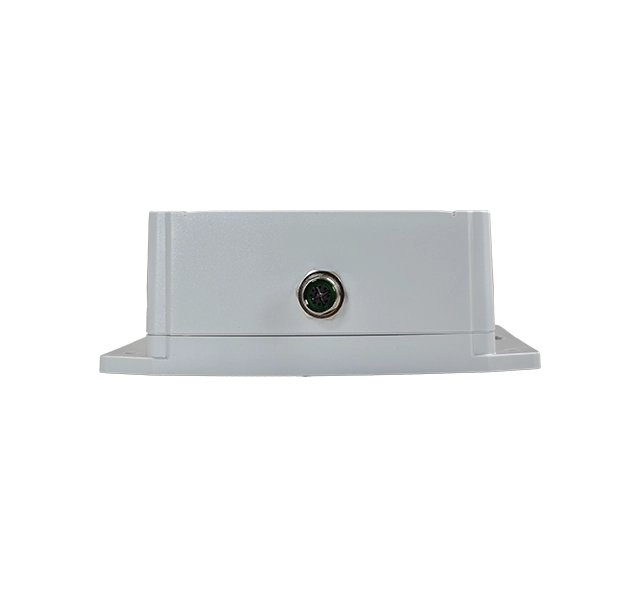

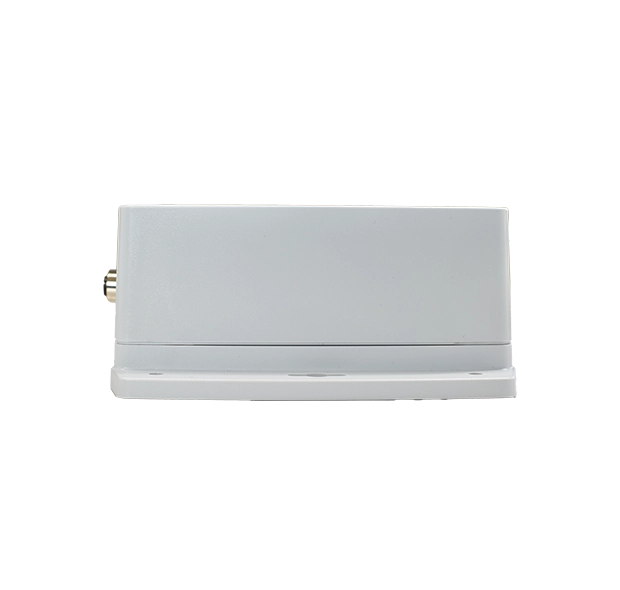

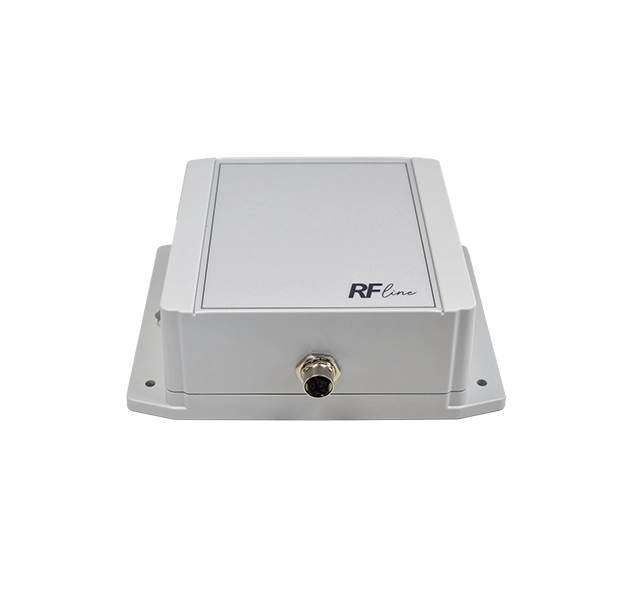

RFline Series
UHF Mid Range Reader – U1
Specifications
| Electrical Specifications | |
|---|---|
| Reading Range | > 4 m |
| Operating Frequency | 865–868 MHz (ETSI) |
| Power | 10 – 24 VDC (M12 5-Pin) or POE (M12 8-Pin) |
| Antenna | Internal |
| Interface | RS232, TCP/IP POE |
| Reader IC | Impinj E310 |
| RF Output Power | Adjustable with up to 30 dBm (1 dB steps) |
| RF Sensitivity | up to -82 dBm |
| Read Rate | > 530 tags/sec |
| Tag Cache | > 530 tags (12-byte EPC) |
| Mechanical Specifications | |
| Dimensions | 141 x 140 x 62 mm |
| Material | Metal |
| Mounting | flat surface or pole, 4 mounting studs for accessory fastening |
| Protection Class | IP67 |
| Environmental Conditions | |
| Operating Temperature | -25 °C up to +55 °C |
| Storage Temperature | -25 °C up to +85 °C |
| Humidity | up to 95 %, non-condensing |
| SDK Information | |
| Supported OS | Windows |
| Supported Standard / Tags | |
| ISO Standard | ISO 18000-63 (EPC Class 1 Gen 2) |
| Radio | EN 302 208 |
| EMC | EN 301 489 |
| Safety | EN 62368-1, EN 50364 |
| Cybersecurity | EN 18031-1 |
| Environment | EN 61373 Cat 1B, EN 45545-2, EN 50155, EN 60068-2-30, Salt Mist EN 50155 |
| Certificates | CE |
*Reading Distance depends on Tag, Antenna and Environmental Conditions.
Description
RFline U1 is designed for access control, gate systems and work station applications, ideally suited for reading distances > 4 meters. Equipped with rugged M12 connectors and a robust housing. The device is powered by the latest IMPINJ E310 reader chip, offering excellent read performance and high flexibility for industrial and IoT environments.
Supporting UHF RFID technology EPC Class 1 Gen 2 (ISO 18000-63) within a frequency range of 865–868 MHz, the RFline U1 enables reliable and fast identification processes.
With up to 30 dBm RF output power via a mono-static antenna port, the reader achieves read rates of > 530 tags per second depending on the tag IC used. Real time temperature monitoring ensures stable operation, even under challenging environmental conditions.
iDTRONIC provides a comprehensive Software Development Kit (SDK) for seamless integration into Linux, Windows and controllerbased systems. The SDK includes full documentation, command protocols, source code examples and a user friendly Windows demo application.
Application areas
- Access Control & Gate System
- Check-In / Check-Out
- Work Stations
