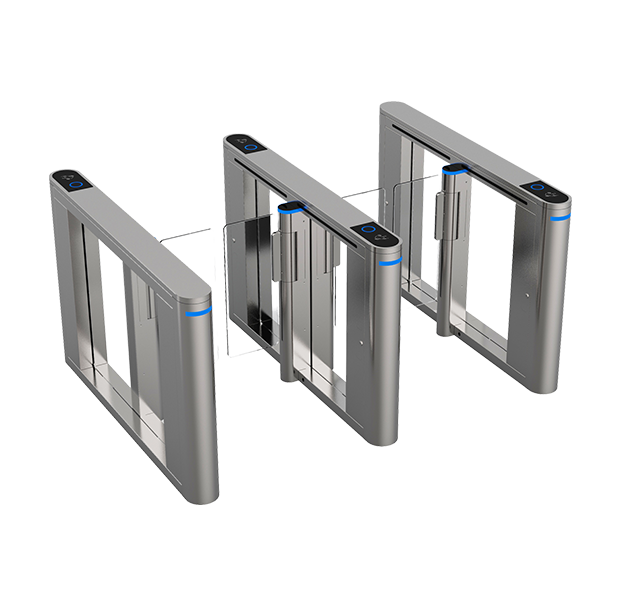

ID GATE 8800 Dual

Highlights

Cutting-edge security gate for controlled access in indoor areas
Anti-tailgating and anti-reverse prevent unauthorized access
Automatic re-locking when not used within a time window
Anti-clipping function protects against accidents during gate movement
Sensor-based with six integrated detection sensors
3 years warranty

Specifications

Specifications
Dimensions1,902 x 980 x 600 mm
MaterialStainless Steel 304
Power Supply100-240 W
Operating Voltage24V
Passage Rate35 – 50 people per minute
Emergency MechanismAutomatic arm opening when powered off
Communication InterfaceDry contact & RS485
Sensors6 units
Operating LocationIndoor
Protection Class> IP65
Operating Temperature-25°C to +70°C
Humidity0 ~ 95%

Description

The ID GATE 8800 DUAL is an elegant and secure security gate for controlled pedestrian separation in modern indoor spaces. It is ideal for gyms, spas, health centers, and similar facilities where both design and security are essential.

Dimensions

Dimensions
Transparent Acrylic / Tempered Glass

Standard

  • 2x 265 x 656.7 mm (600 mm passage width; 980 mm height)
  • 2x 425 x 1000 mm (900 mm passage width; 1300 mm height)

Accessories (optional)

Produkt Zubehör
Zubehör (Optional)
  • iDTRONIC R840 Ethernet
  • QR-Code-Lesegerät ID Ident 1500/2000
  • Fremdleser-Einbau (z.B. MIFARE ®, LEGIC, EM, HID, etc.)
  • Fernbedienung (Kabel / Kabellos)
  • Installation von Fremdlesern (z.B. MIFARE, LEGIC, EM, HID usw.)

Drittlesereinbau auf Anfrage

This might also interest you

Security Gate

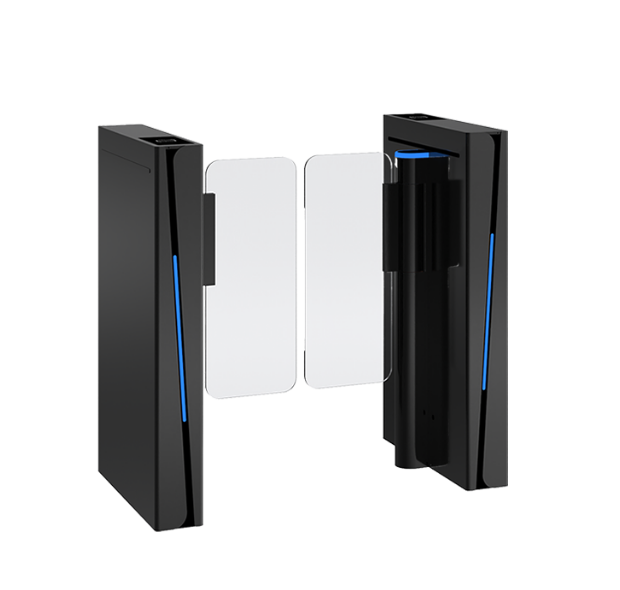

ID GATE 5600

Security Gate

ID GATE 5600 Dual

Security Gate

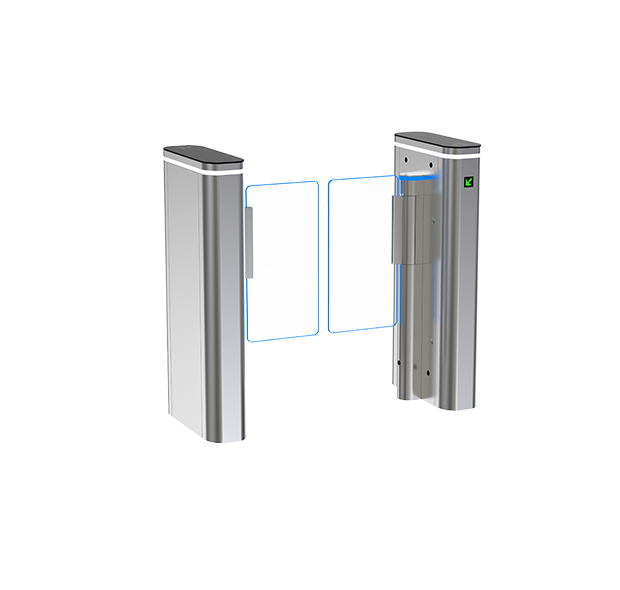

ID GATE 5800
