ID GATE 5800 Dual

ID GATE 5800 Dual Security Gate

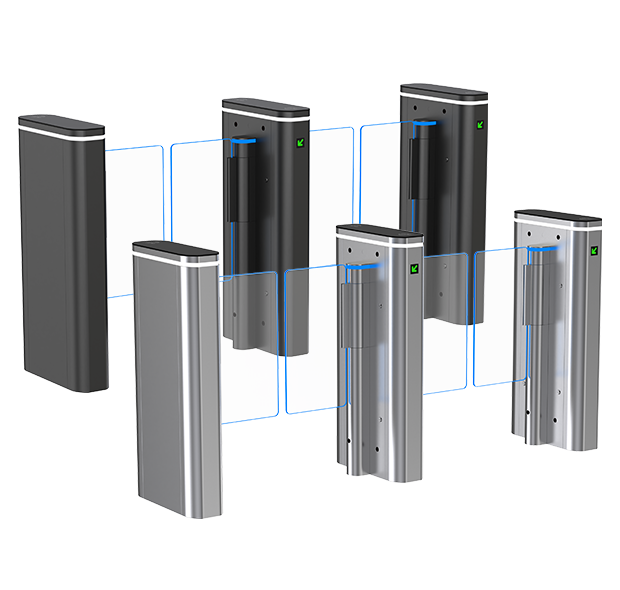

5800D_620x590_2

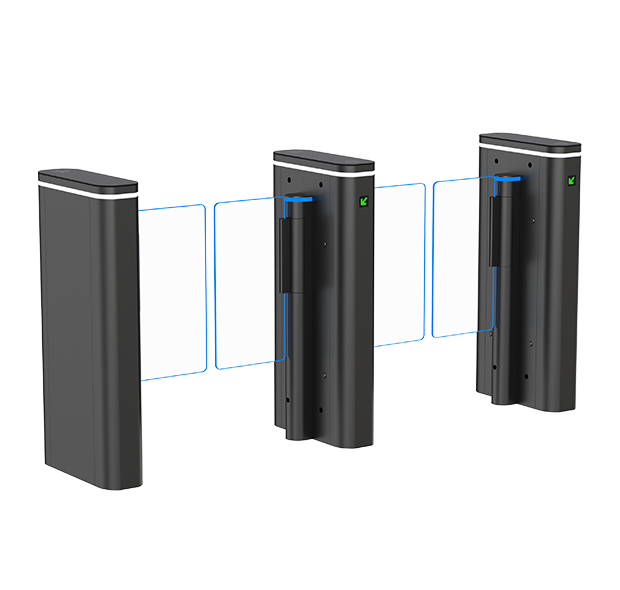

5800B_Dual_620x590_1

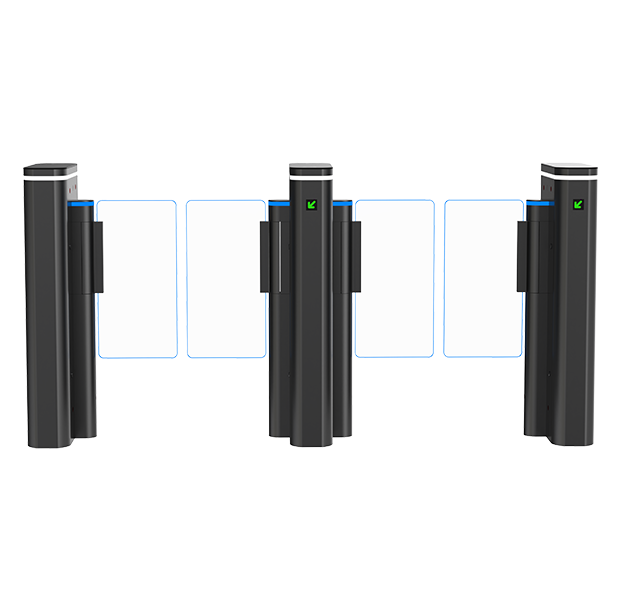

5800B_Dual_620x590_2

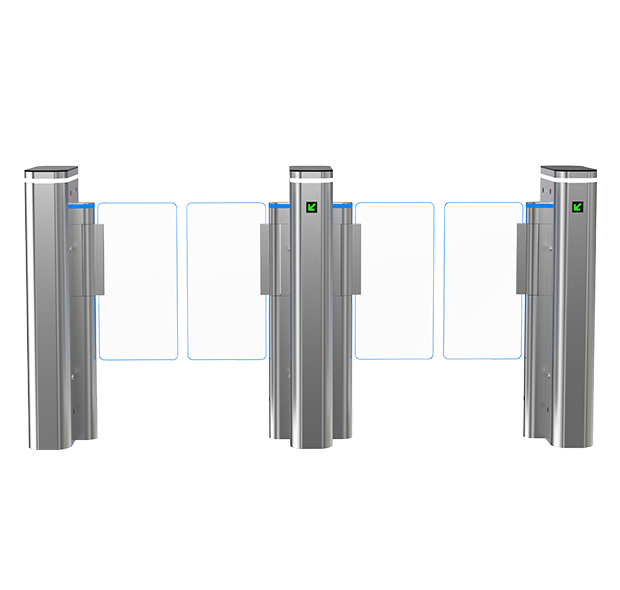

5800S_Dual_620x590_2

Highlights

Efficient access control with high operational reliability
Extremely fast opening and closing time of 0.5 seconds
7 integrated sensors for precise person detection
RGB lighting and LED indicators for directional guidance
Transparent gate wings made of acrylic or tempered glass
Automatic opening of the wing doors in case of power failure

Specifications

Specifications
Dimensions1920 x 978 x 450 mm
MaterialStainless Steel 304 – Painted Black
Stainless Steel 304
Power SupplyAC220V / 110V, 50/60Hz
Operating Voltage24V DC
Capacity55 persons per minute
Emergency MechanismAutomatic arm opening when powered off
Communication InterfaceDry Contact, Relay Signal, RS485
Sensors7 units
Operating LocationIndoor
Protection ClassIP4X
Operating Temperature-20°C to +70°C
Humidity≤90%

Description

The ID GATE 5800 DUAL is a modern security gate for efficient access control in demanding indoor environments. It is ideally suited for locations with high foot traffic such as corporate headquarters, gyms, or public facilities, offering maximum security and efficiency through its intelligent sensors and robust construction.

Dimensions

Dimensions
Transparent Acrylic /
Tempered Glass

Standard

  • 300 x 650 mm (650 mm passage width; 930 mm height)
  • 425 x 650 mm (900 mm passage width; 930 mm height)
  • 300 x 1020 mm (650 mm passage width; 1300 mm height)
  • 425 x 1020 mm (900 mm passage width; 1300 mm height)

Accessories (optional)

Product Accessories
Accessories (Optional)
  • iDTRONIC R840 Ethernet
  • QR Code Reader ID Ident 1500/2000
  • Third-party reader integration (e.g. MIFARE®, LEGIC, EM, HID, etc.)
  • Remote control (Wired / Wireless)
  • Installation of third-party readers (e.g. MIFARE, LEGIC, EM, HID, etc.)

Third-party reader integration available upon request
