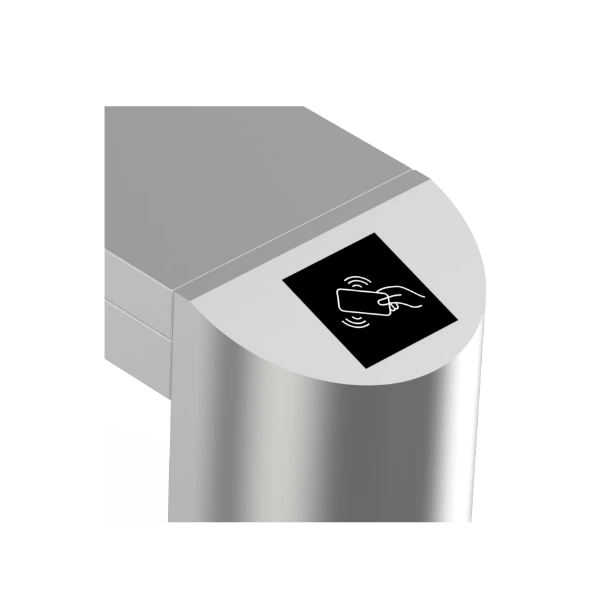

ID GATE 9200
Highlights
Durable, high operational reliability and fast response
Transponder or ticket-based input and output possible, alternatively free-turning output
Automatic anti-panic folding arms
Integrated LED indicators show the direction of passage
Indoor & Outdoor variant available
3 years guarantee
Specifications
Specifications | |
---|---|
Dimensions | 1200 x 280 x 1000mm (L x B x H) |
Passage width | 550mm (Arm length: 500mm) |
Material | Stainless steel 304 (IP44) Indoor Stainless steel 312 (IP65) Outdoor |
Power supply | AC230V/110V, 50/60Hz |
Power consumption | 20W-50W |
Supply voltage | 24V DC |
Passage frequency | 35-40 people per minute |
Emergency mechanism | Automatic anti-panic folding arms |
Communication interface | TCP/IP, RS485, dry contact, relay signal |
Operating temperature | -15 °C – 60 °C |
Optional |
Third reader installation on Request |
Description
The ID GATE 9200 turnstile is a flexible access control solution that can be used in various areas. In office buildings, airports, public transportation, stadiums, universities, museums and retail stores. Our solution helps to restrict access to certain areas to authorized persons only.
Thanks to its reliability and flexibility, the ID GATE 9200 turnstile is an excellent choice for anyone who needs secure access control.
